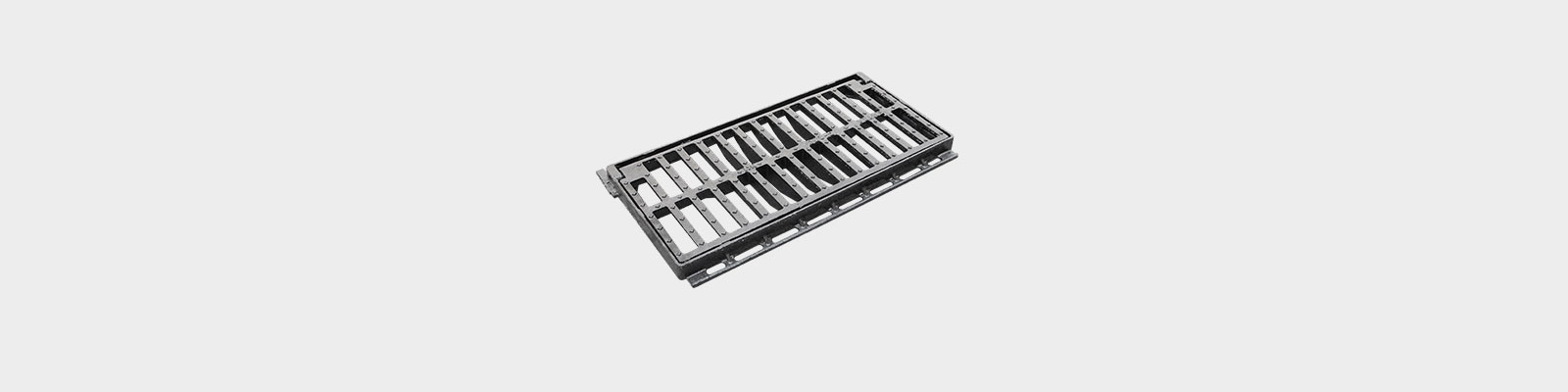

Ref. TR1
Burgos
Manufacturing:

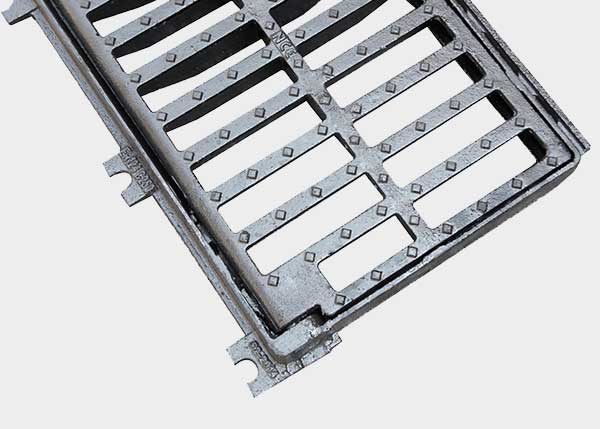

Grate and frame assembly made of ductile cast iron.
Stability:

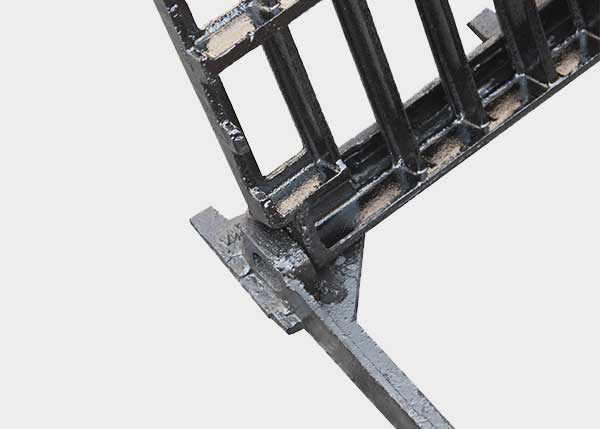

Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Grate and frame assembly made of ductile cast iron.
Stability:
Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Dimensions
- CLASS - C250
- A-690mm
- B-375mm
- C-650mm
- D-300mm
- H-38mm
- P-620mm
- P1-270mm
Downloads
Specifications
- C-250
