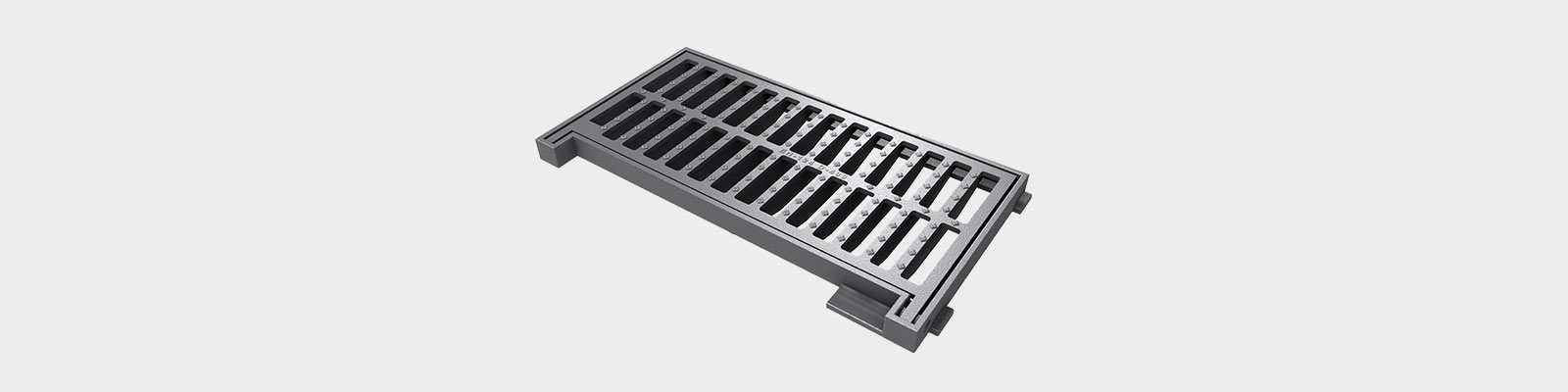

Ref. TR1D4
Burgos
Manufacturing:
Channel and grate assembly made of ductile cast iron.
Stability:
Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian streets), roadsides and parking areas for all type of vehicles.
Channel and grate assembly made of ductile cast iron.
Stability:
Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian streets), roadsides and parking areas for all type of vehicles.
Dimensions
- CLASS - D400
- A-700mm
- B-365mm
- C-650mm
- D-345mm
- H-40mm
- P-625mm
- P1-270mm
Downloads
Specifications
- D-400
