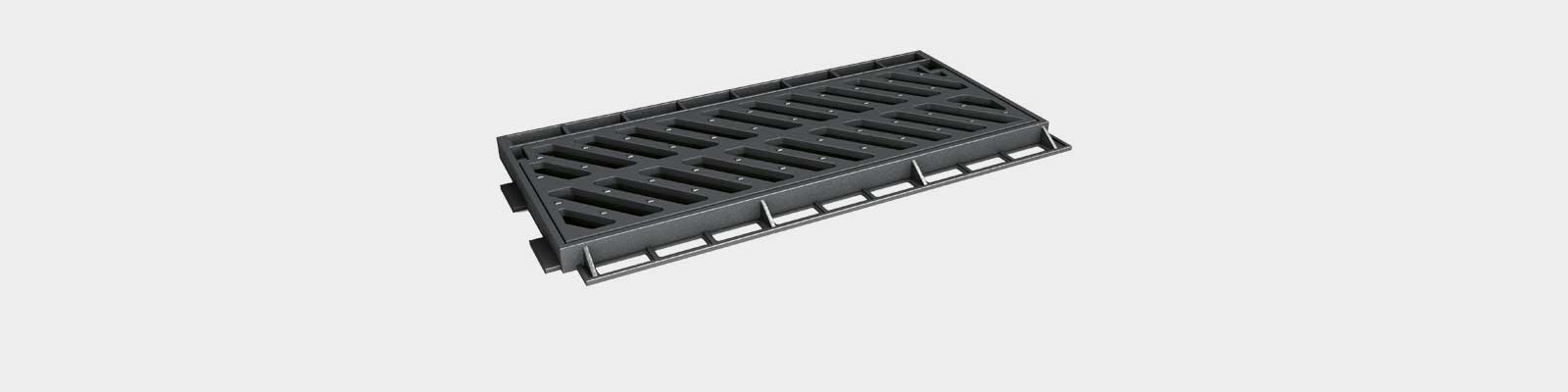

Ref. TR375
Diagonal
Manufacturing:
Grate and frame assembly made of ductile cast iron.
Stability:
Diagonal water catchment system at different levels, with central bar system to allow the circulation of two-wheeled vehicles, hinged and anti theft system. Tab system incorporated to make drains at different lengths.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Pedestrian areas or other areas with a maximum load of 250 kN.
Grate and frame assembly made of ductile cast iron.
Stability:
Diagonal water catchment system at different levels, with central bar system to allow the circulation of two-wheeled vehicles, hinged and anti theft system. Tab system incorporated to make drains at different lengths.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Pedestrian areas or other areas with a maximum load of 250 kN.
Dimensions
- CLASS - 250KN
- A-790mm
- B-335mm
- C-745mm
- D-250mm
- H-40mm
- P-715mm
- P1-230mm
Downloads
Specifications
- 250KN
Regulations
- UNE EN-124
