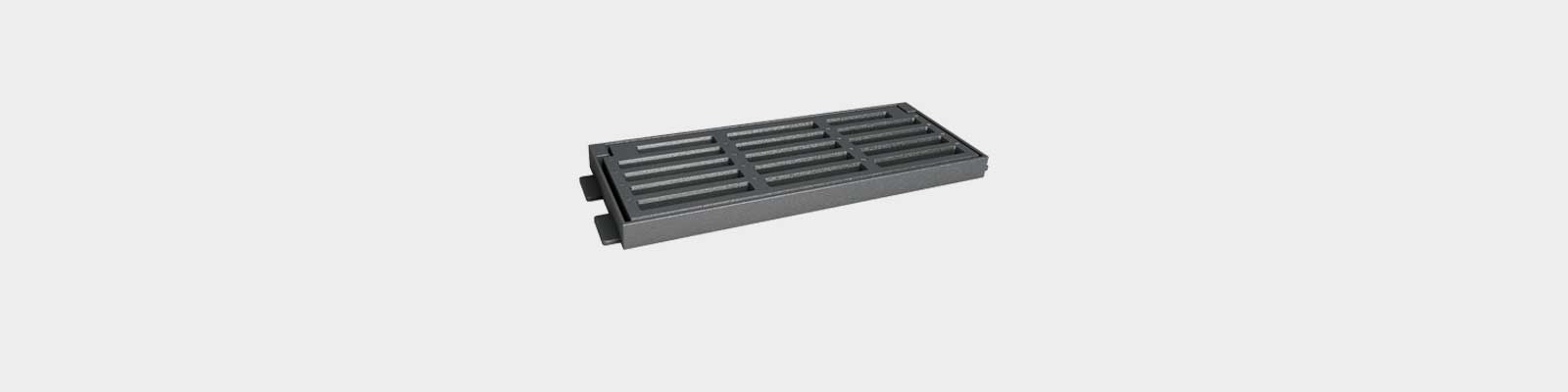

Ref. TR9
Porto
Manufacturing:

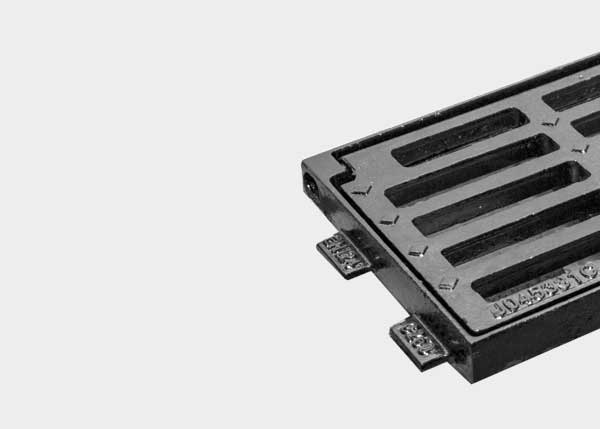

Grate and frame assembly made of ductile cast iron.
Stability:
Perpendicular bars system on the same direction of traffic to allow the circulation of two-wheeled vehicles. Hinged, anti theft system and slippery-proof.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Pedestrian areas or other areas with a maximum load of 25 kN.
Manufacturing:
Grate and frame assembly made of ductile cast iron.
Stability:
Perpendicular bars system on the same direction of traffic to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Grate and frame assembly made of ductile cast iron.
Stability:
Perpendicular bars system on the same direction of traffic to allow the circulation of two-wheeled vehicles. Hinged, anti theft system and slippery-proof.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Pedestrian areas or other areas with a maximum load of 25 kN.
Manufacturing:
Grate and frame assembly made of ductile cast iron.
Stability:
Perpendicular bars system on the same direction of traffic to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Dimensions
- CLASS - C250
- A-520mm
- B-255mm
- C-460mm
- D-240mm
- H-35mm
- P-430mm
- P1-205mm
Downloads
Specifications
- C-250
Regulations
- UNE EN-124
