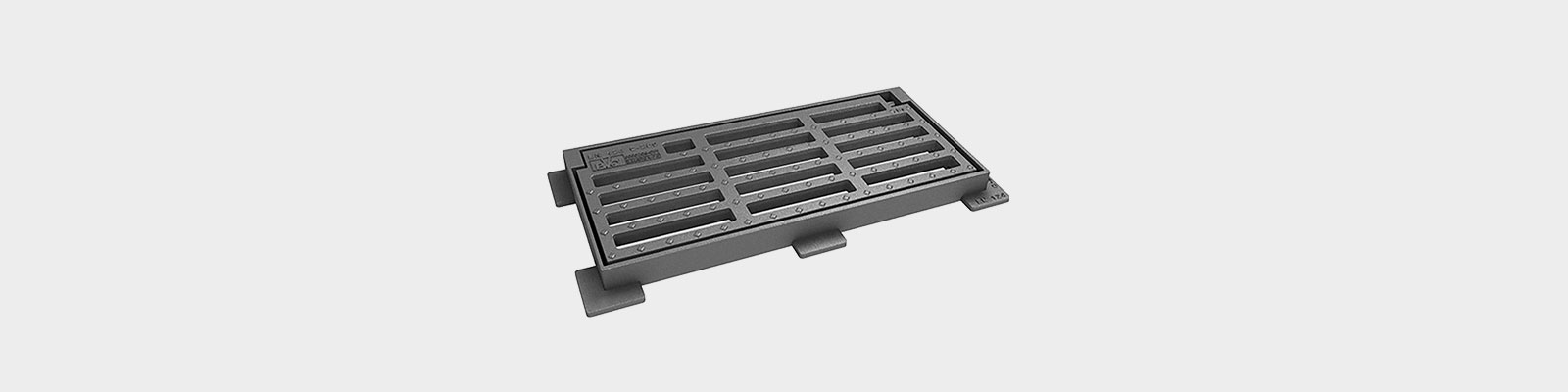

Ref. TR11
Terra
Manufacturing:
Channel and grate assembly made of ductile cast iron.
Stability:
Perpendicular bars system on the same direction of traffic to allow the circulation of two-wheeled vehicles. Hinged, anti theft system and slippery-proof.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Pedestrian areas or other areas with a maximum load of C-250.
Channel and grate assembly made of ductile cast iron.
Stability:
Perpendicular bars system on the same direction of traffic to allow the circulation of two-wheeled vehicles. Hinged, anti theft system and slippery-proof.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Pedestrian areas or other areas with a maximum load of C-250.
Dimensions
- CLASS - C-250
- A-660mm
- B-290mm
- C-590mm
- D-240mm
- H-45mm
- P-550mm
- P1-205mm
Downloads
Specifications
- C-250
