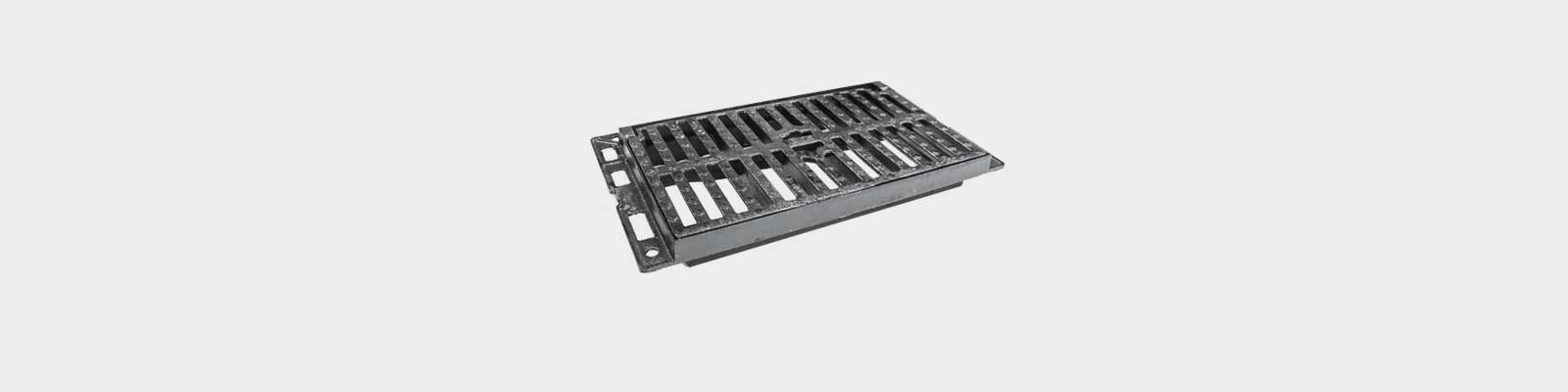

Ref. TR7

Topo

Manufacturing:
Grate and frame assembly made of ductile cast iron.

Stability:

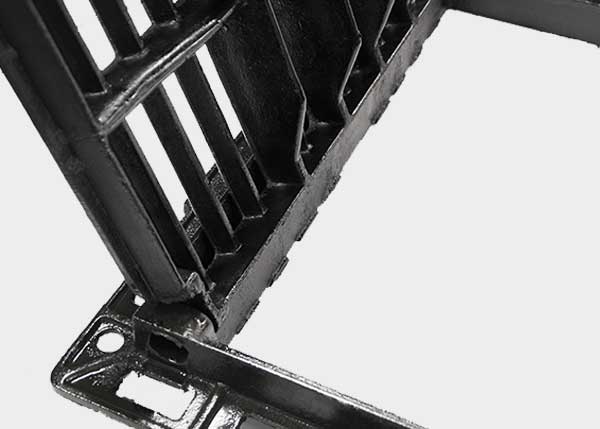

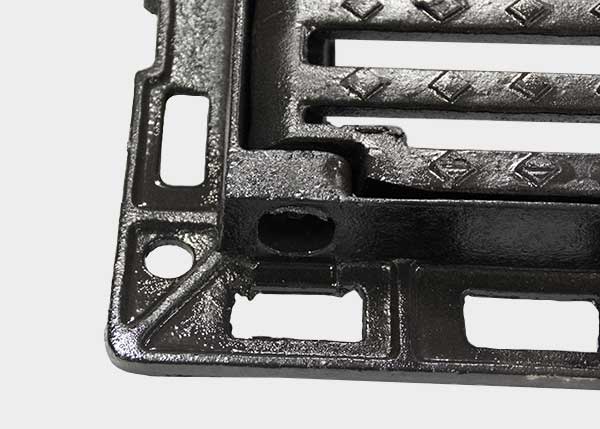

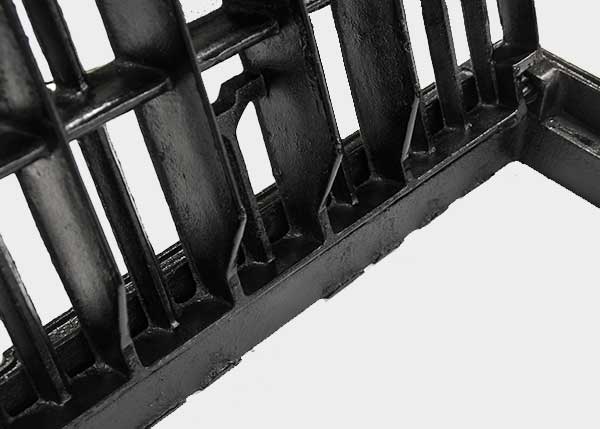

Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.

Coating:

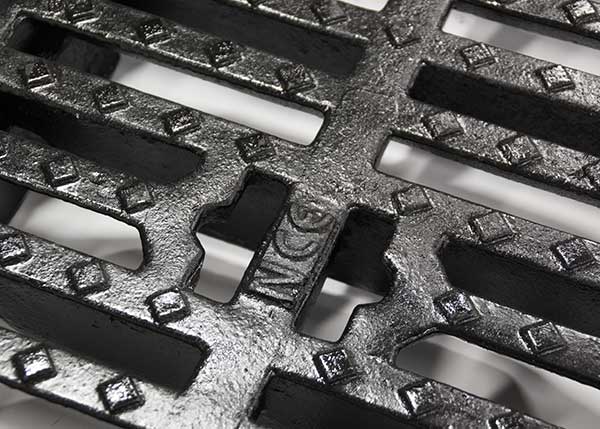

Slippery-proof surface finished with water-soluble non toxic black painting.

Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas (TR7). Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles (TR7D4).

Dimensions

Covers and grates for sewage, manhole covers, cast iron, channels and sumps , Grates , TR7 Topo ,
  • CLASS - C250
  • A-725mm
  • B-415mm
  • C-600mm
  • D-350mm
  • H-80mm
  • P-550mm
  • P1-295mm

TECHNICAL DATA

Covers and grates for sewage, manhole covers, cast iron, channels and sumps , Grates , TR7 Topo ,

Specifications

  • C-250
    C-250

Regulations

  • UNE EN-124
    UNE EN-124

Details and View
