Ref. TR7D4
Topo
Manufacturing:

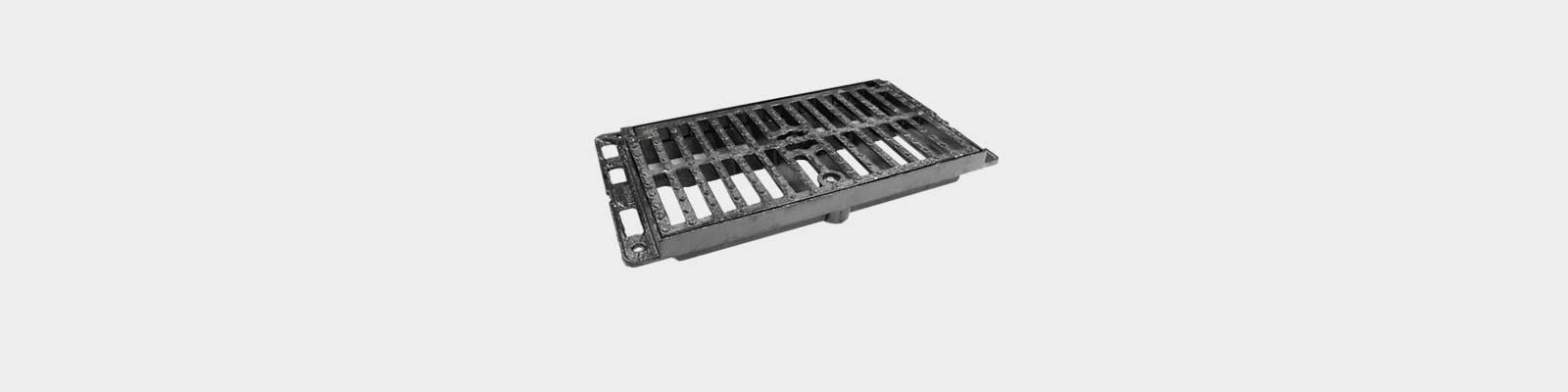

Grate and frame assembly made of ductile cast iron.
Stability:

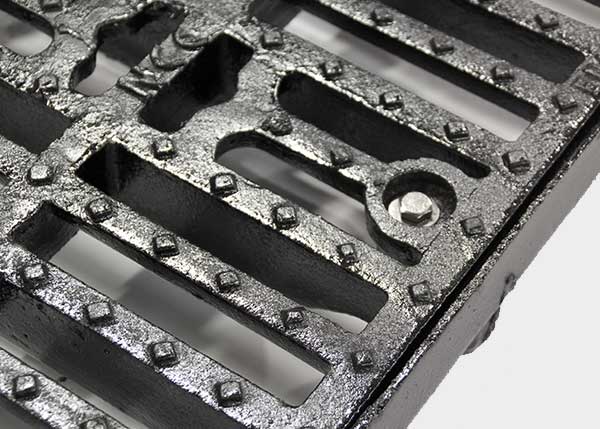

Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas (TR7). Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles (TR7D4).
Grate and frame assembly made of ductile cast iron.
Stability:
Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Suitable height of the frame to allow a perfect achorage in high-traffic areas.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas (TR7). Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles (TR7D4).
Dimensions
- CLASS - D400
- A-725mm
- B-415mm
- C-602mm
- D-350mm
- H-80mm
- P-550mm
- P1-295mm
Downloads
Specifications
- D-400
Regulations
- UNE EN-124
