Ref. TR8
Trafic
Manufacturing:

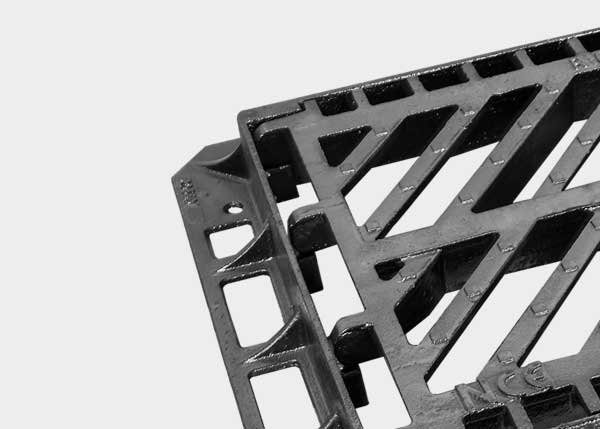

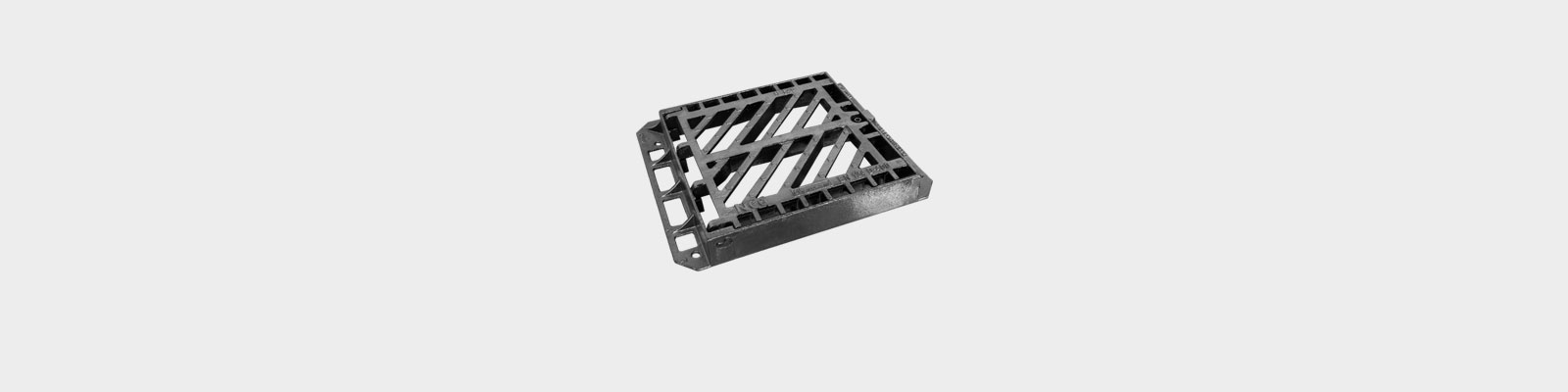

Grate and frame assembly made of ductile cast iron.
Stability:
Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Safety lock system with screw. Specially for very heavy traffic areas. High resistance and free maintenance, ensuring high stability and total absence of noise.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian ways), roadsides and parking areas for all type of vehicles.
Grate and frame assembly made of ductile cast iron.
Stability:
Central bar system to allow the circulation of two-wheeled vehicles. Hinged, antitheft system and slippery-proof. Safety lock system with screw. Specially for very heavy traffic areas. High resistance and free maintenance, ensuring high stability and total absence of noise.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian ways), roadsides and parking areas for all type of vehicles.
Dimensions
- CLASS - D400
- A-580mm
- B-520mm
- C-440mm
- D-440mm
- H-75mm
- P-445mm
- P1-445mm
TECHNICAL DATA
Downloads
Specifications
- D-400
Regulations
- UNE EN-124
