Ref. TP460
Dex
Manufacturing:

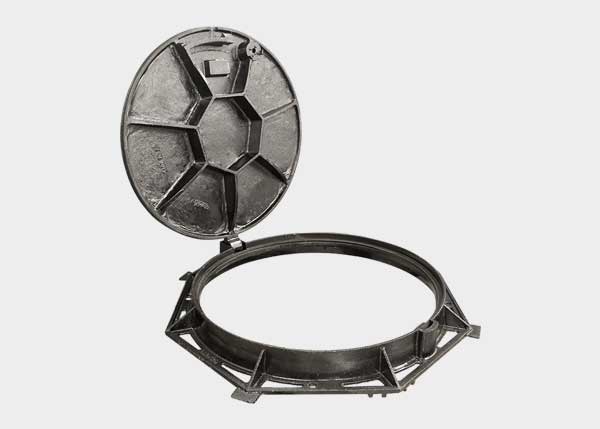

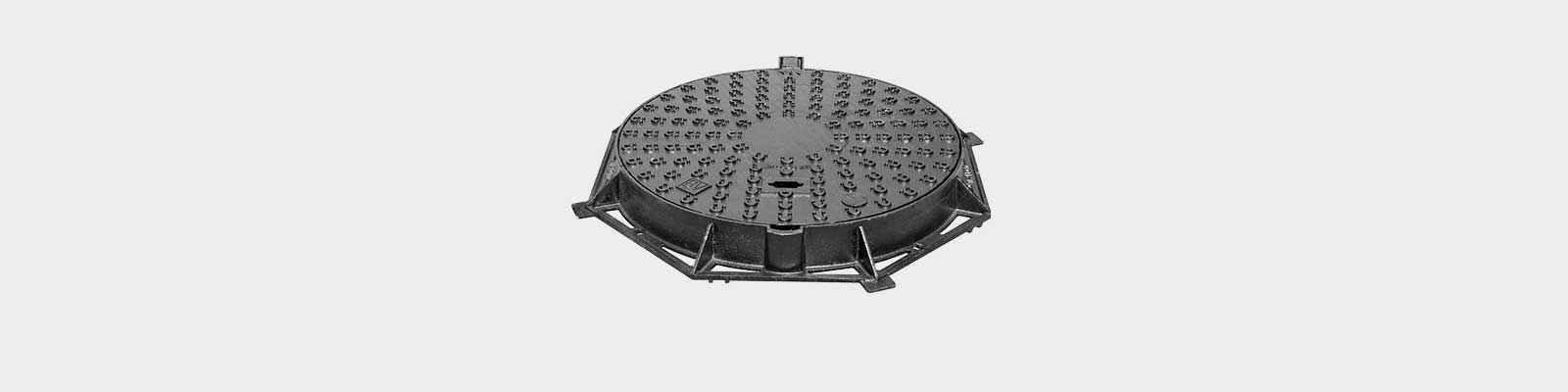

Cover and frame assembly made of ductile cast iron.
Stability:

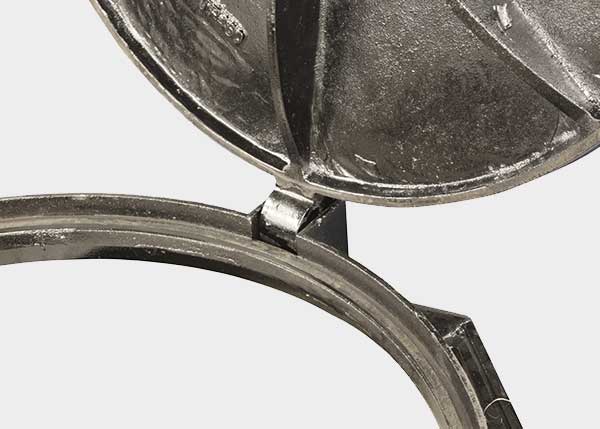

Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in the daily use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Cover and frame assembly made of ductile cast iron.
Stability:
Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in the daily use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Dimensions
- CLASS - C250
- A-825mm
- C-620mm
- H-80mm
- P-600mm
TECHNICAL DATA
Downloads
Specifications
- C-250
