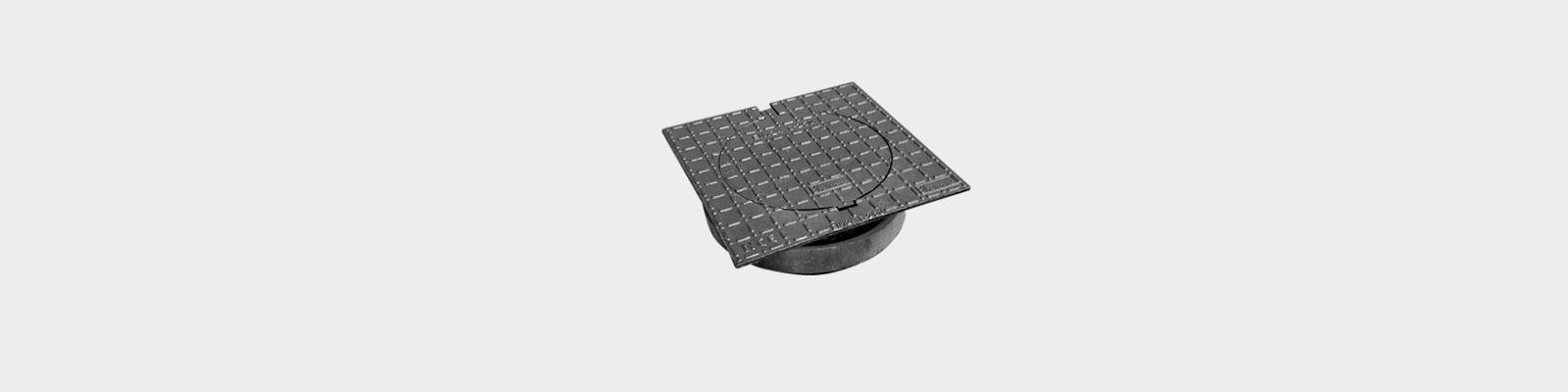

Ref. TT36
Tabo
Manufacturing:
Cover and frame assembly made of ductile cast iron.
Stability:
Hinged ergonomic system with finger grips, opening up to 120º . Hinged and antitheft system. Soundproof interior due to the gasket for PVS tubes. Square frame adapted to paved roads.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Cover and frame assembly made of ductile cast iron.
Stability:
Hinged ergonomic system with finger grips, opening up to 120º . Hinged and antitheft system. Soundproof interior due to the gasket for PVS tubes. Square frame adapted to paved roads.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class C250 EN-124. Group 3. Roadsides, street gutters and parking areas.
Dimensions
- CLASS - C250
- A-360mm
- B-360mm
- H-155mm
- C-270mm
- P-250mm
TECHNICAL DATA
Downloads
Specifications
- C-250
Regulations
- UNE EN-124
