Ref. AML

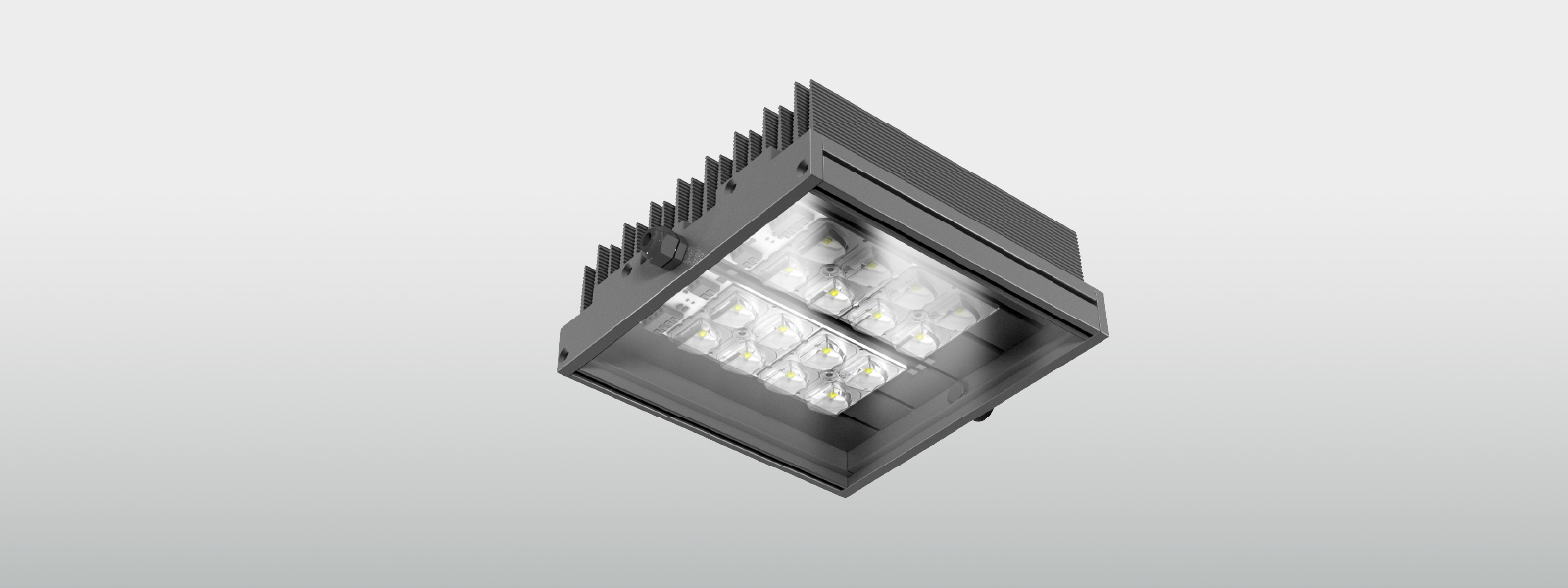

NOVATILUX module

Add
Body
Extruded aluminium. 4mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 2 formats (16 or 32 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:
    -Double level with line driver or programmable timer.
    -Multi-level with re-programmable timer.
    -Remote management.


Light source
LED: 30-140 W

Finishing
Black anodized. Corrosion resistant. Matt black color.

Mounting Height
3 - 14 m.

Attachment
Lateral or lower anchors with sheet or metric threaded fasteners . It fits any luminaire via an adapter plate.

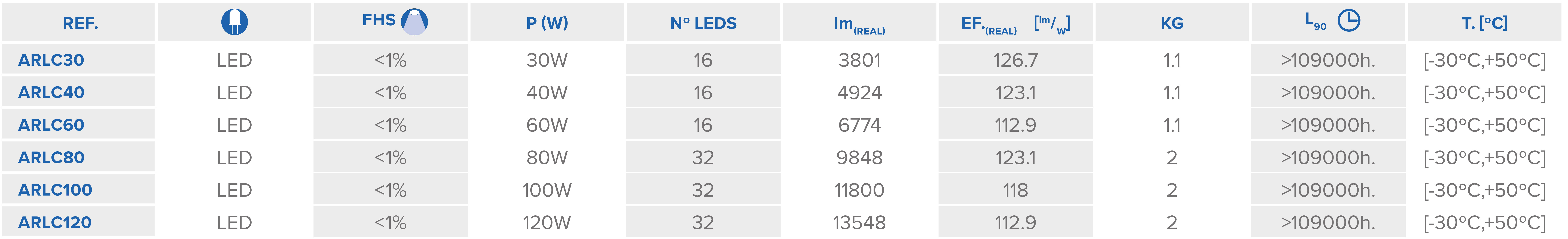

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,

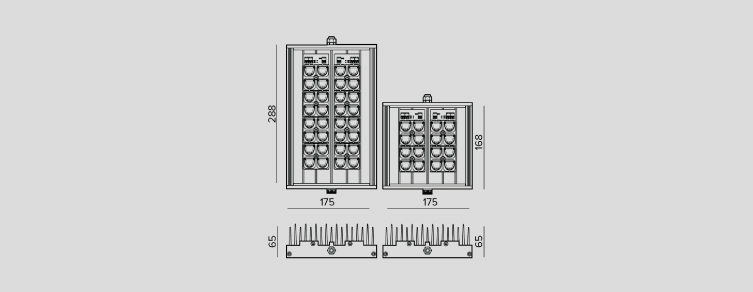

Dimensions

Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,

Downloads

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • Recycling Certificate
    Recycling Certificate
  • FHS
    FHS

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • CRI
    CRI

Regulations

  • IK10
    IK10
  • Ground
    Ground
  • Class II
    Class II
  • IP67
    IP67

Locations

  • Highways and roads
    Highways and roads
  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • Color NM
    Color NM

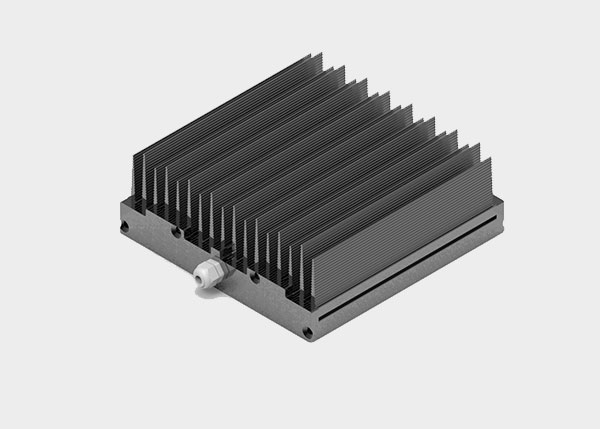

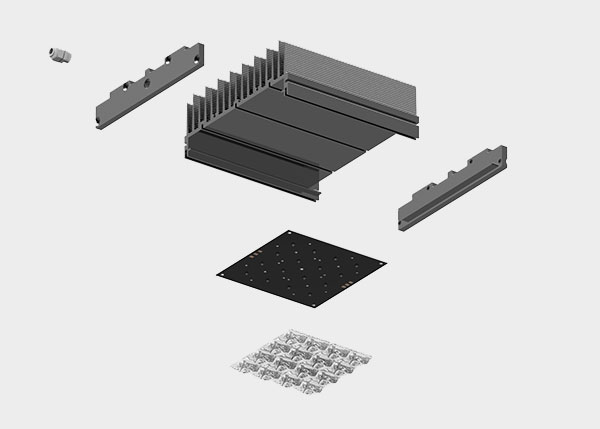

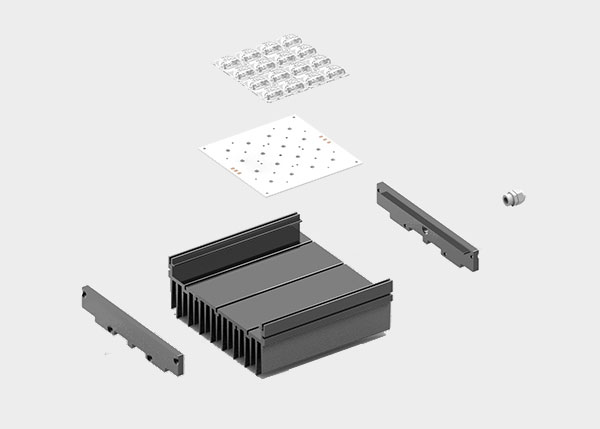

Details and View

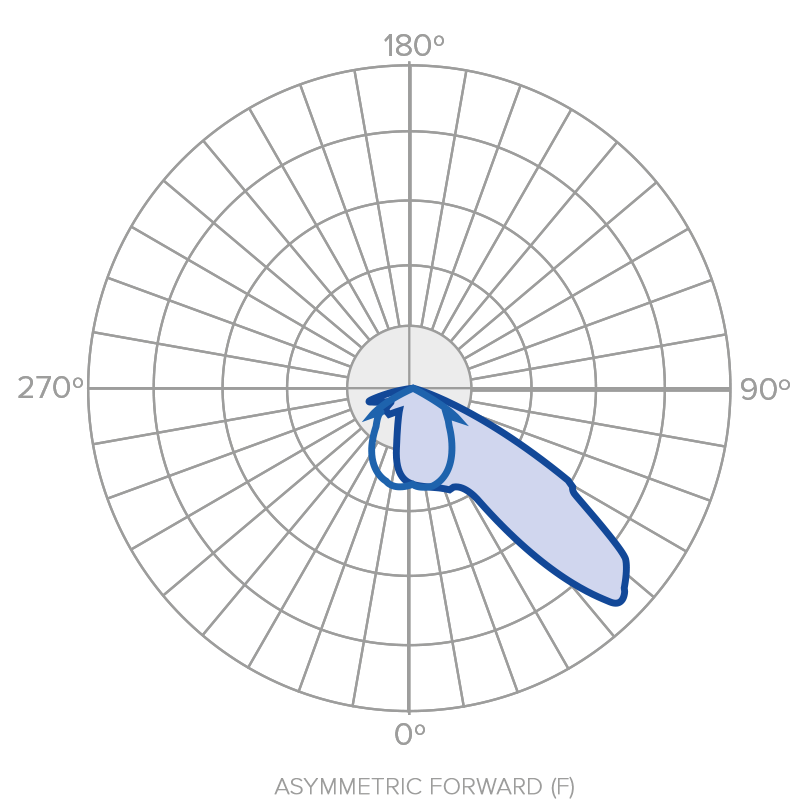

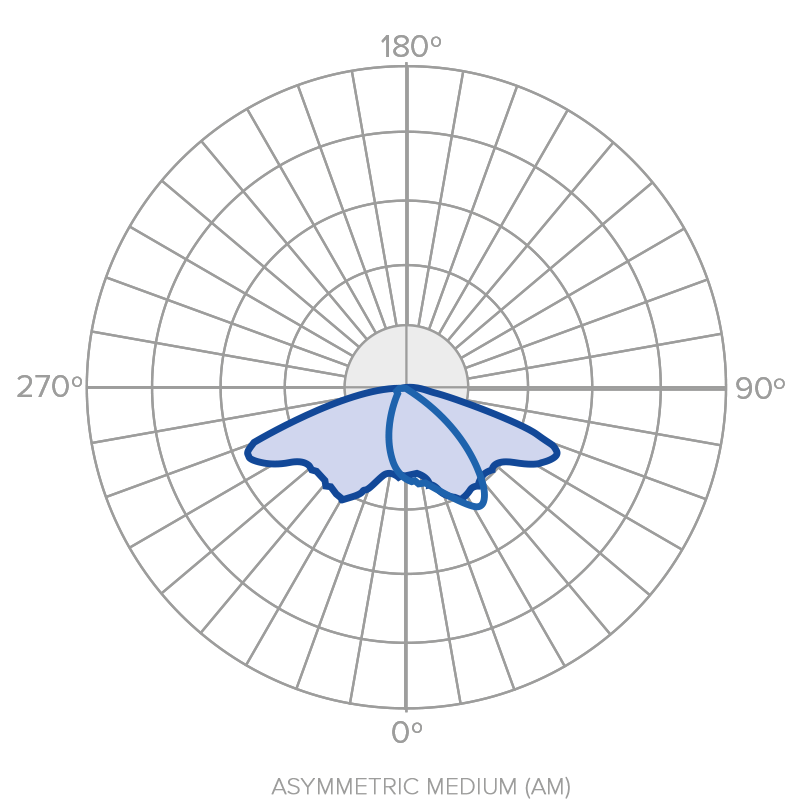

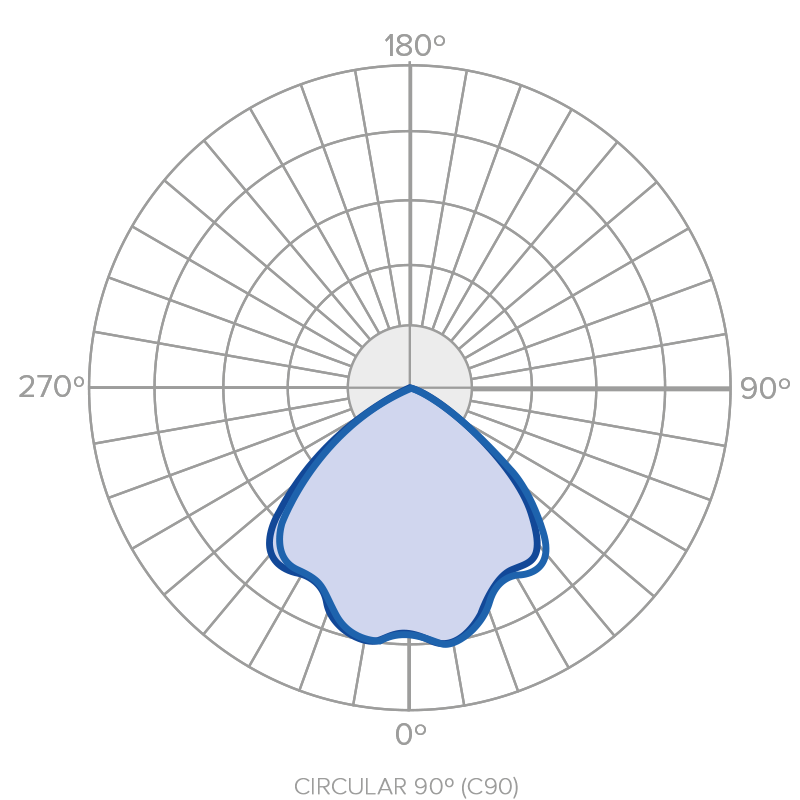

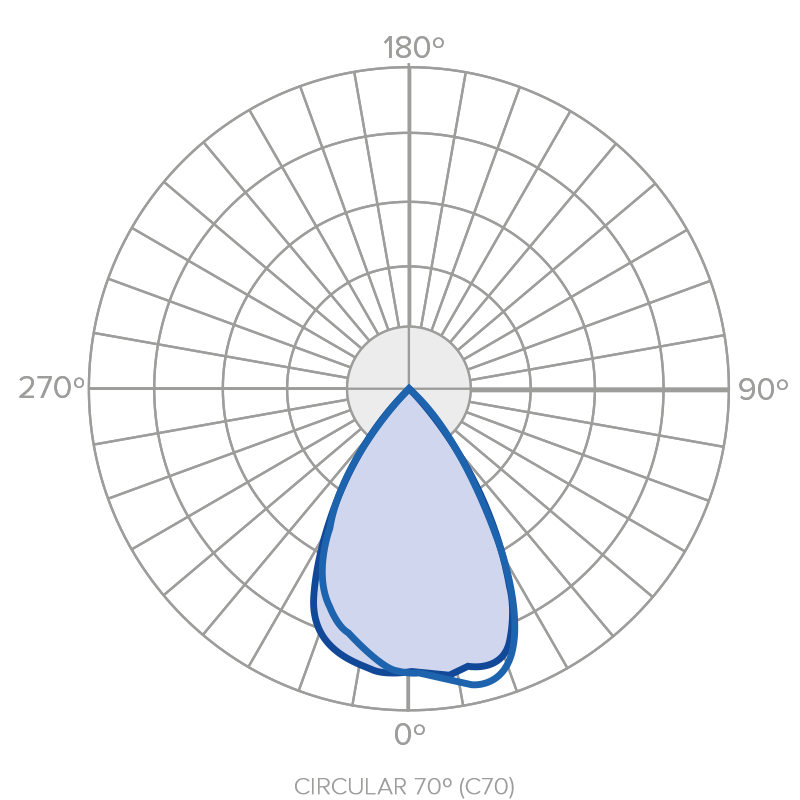

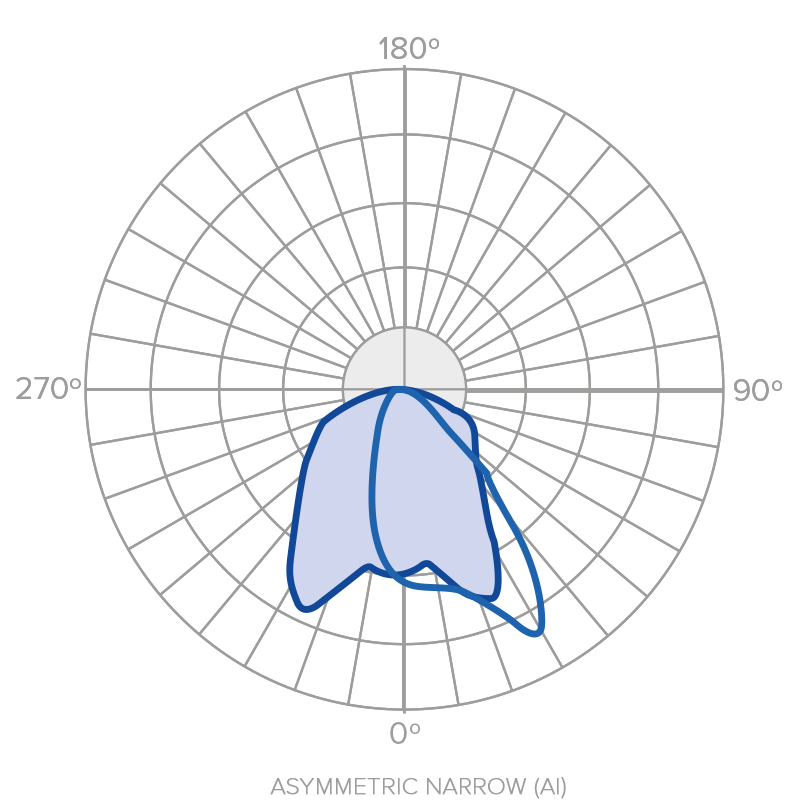

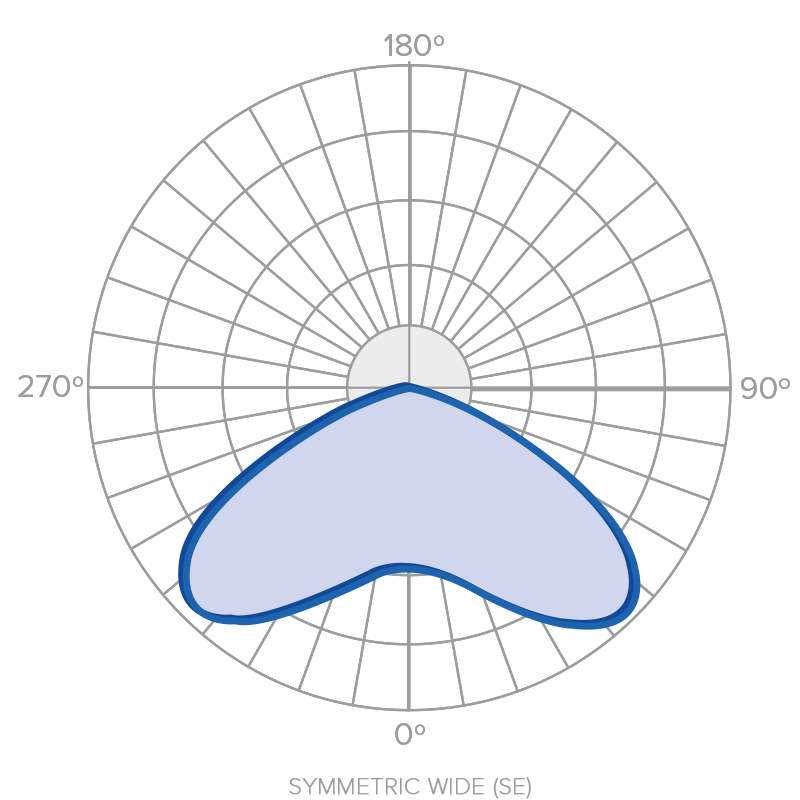

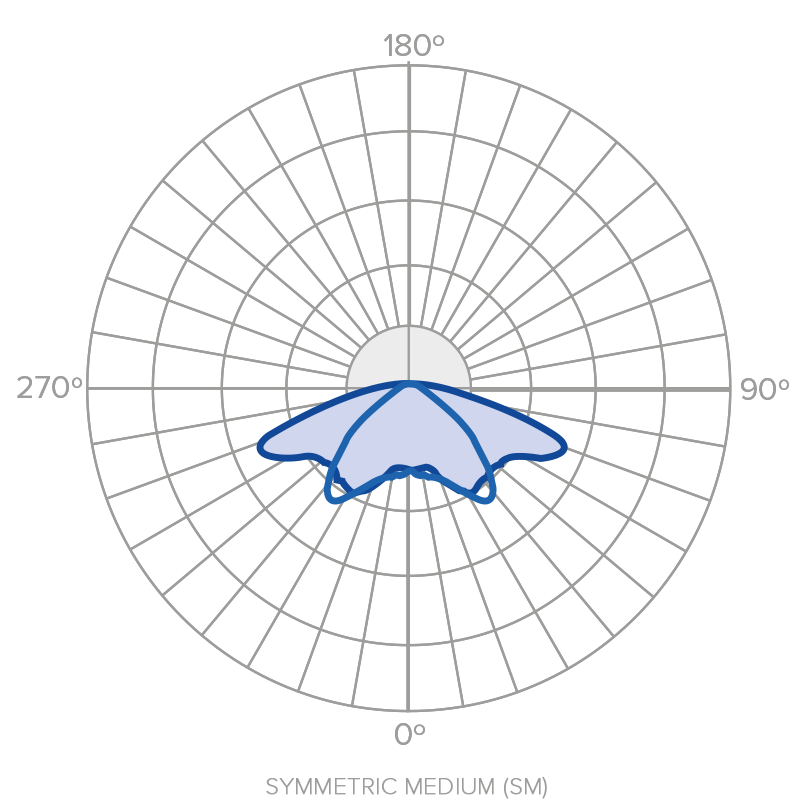

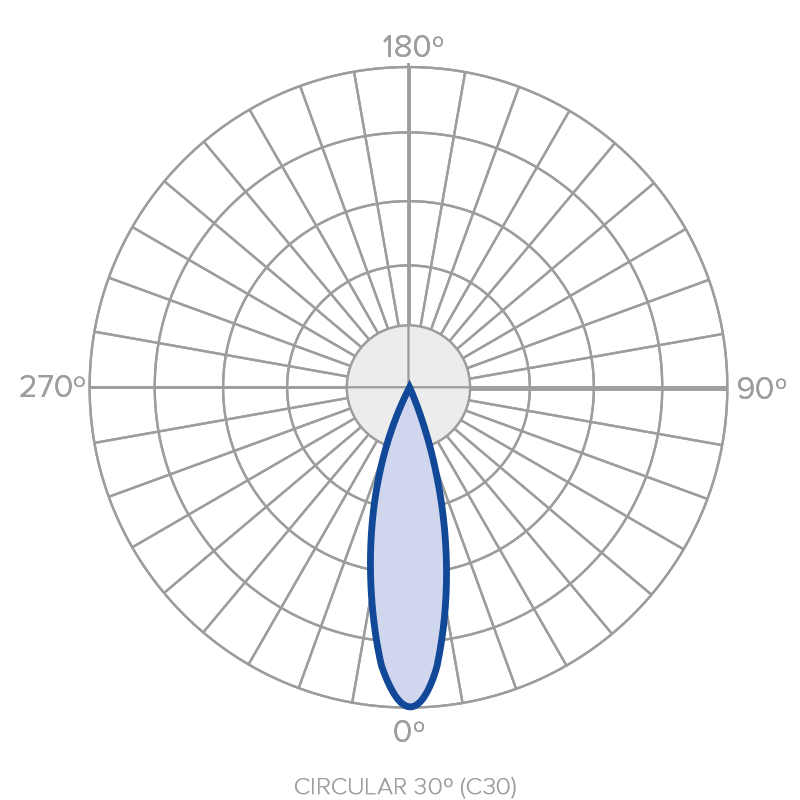

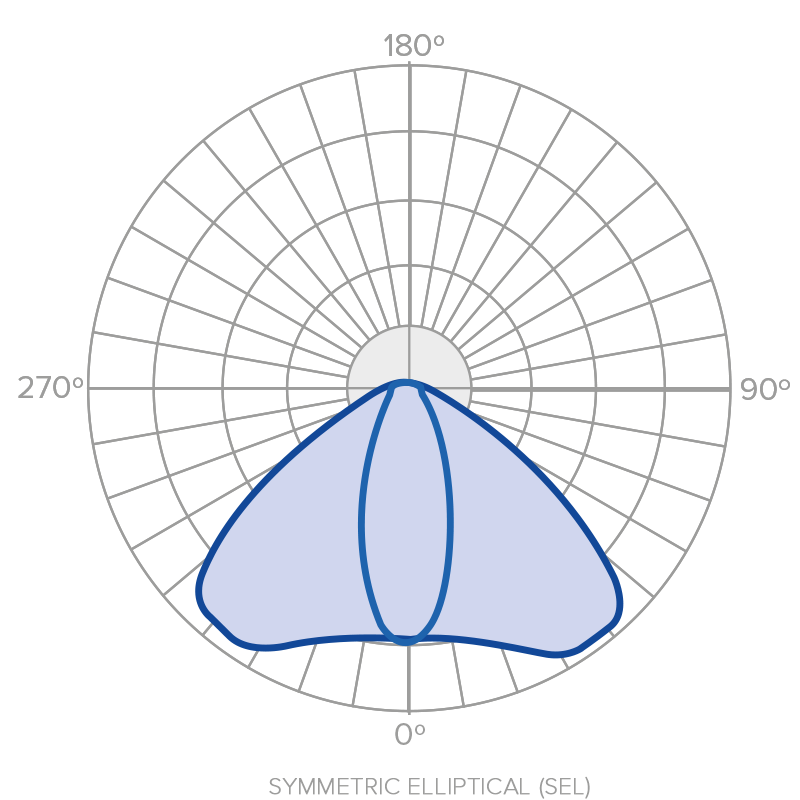

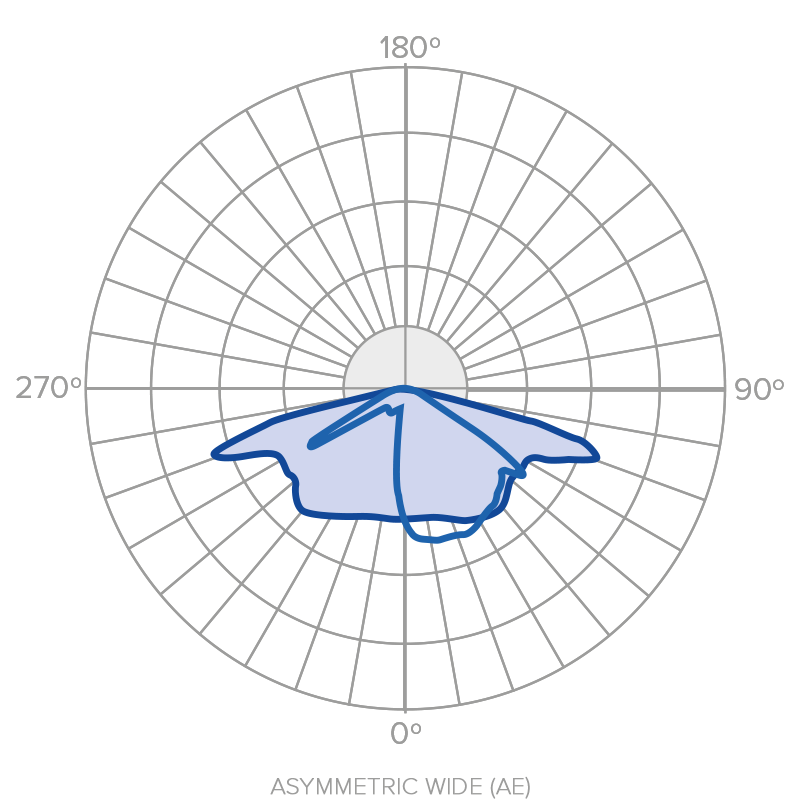

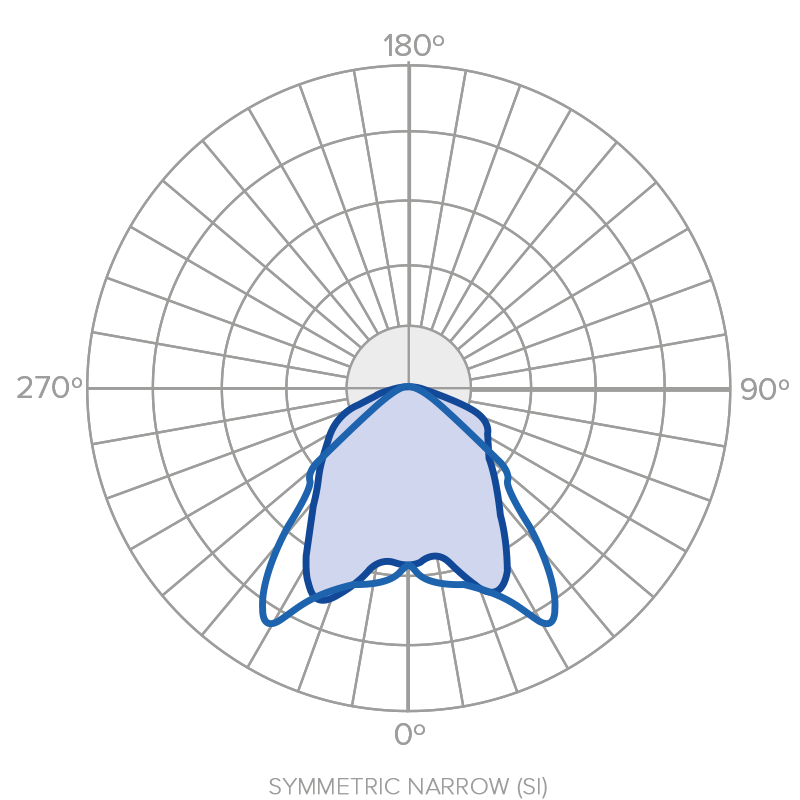

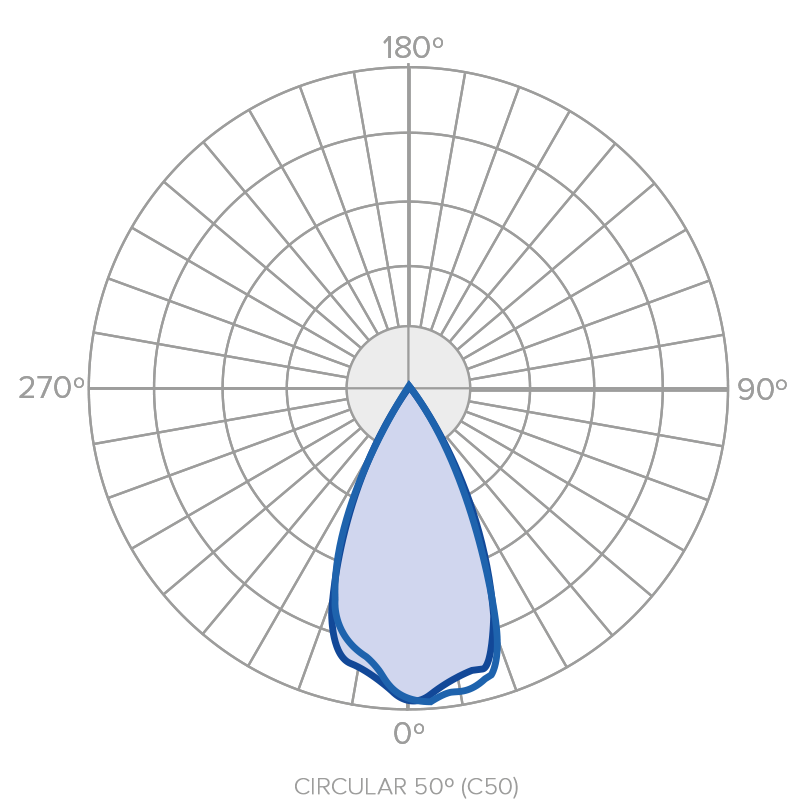

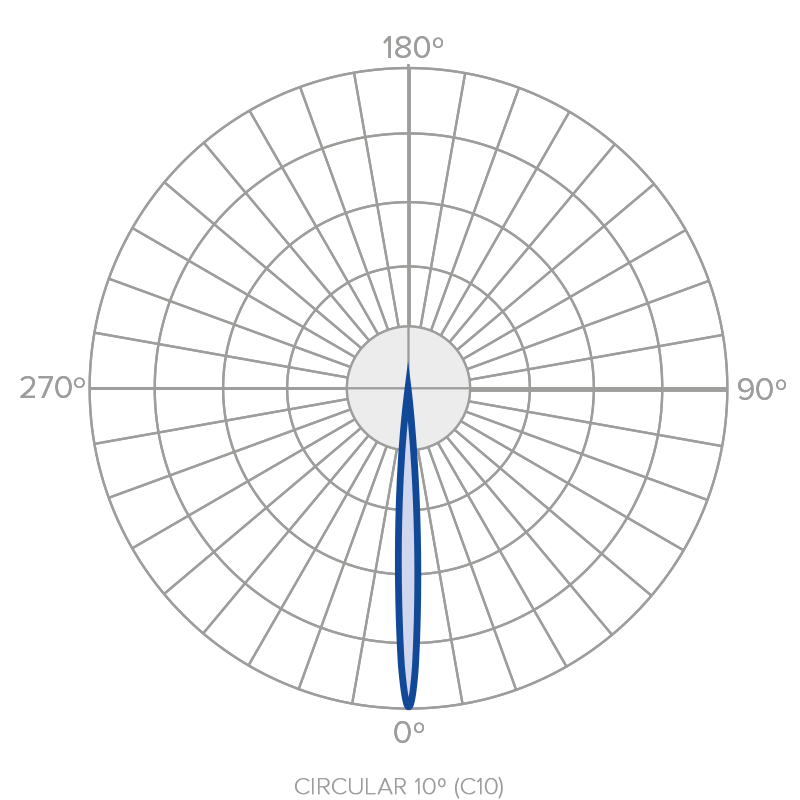

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,
  • Public lighting with LED luminaires for outdoor lighting , Novatilux module , AML NOVATILUX module ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
