Ref. APALL

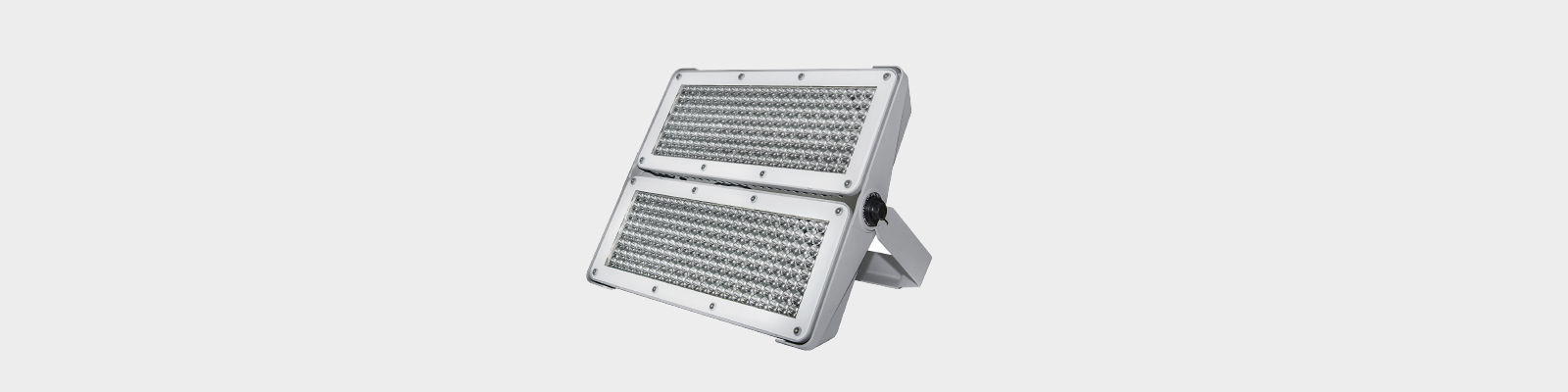

Apolo L Projector
Body
High pressure die-cast aluminum and magnesium alloy. 5 mm tempered glass. LED module and electronic equipment in separate compartments.
Screws
Stainless steel bolts.
Optic bloc
NOVATILUX module in 1 formats (2x192 LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Class I. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Light source
LED: 1000 W.
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.
Mounting Height
16-40 m.
Attachment
Painted steel bracket.
Adjustable
Adjustable luminaire with tilt range from -90º to 90º from center point. Each optical block is adjustable ± 20 independently one by one. Accessories to adapt the orientation laser.
High pressure die-cast aluminum and magnesium alloy. 5 mm tempered glass. LED module and electronic equipment in separate compartments.
Screws
Stainless steel bolts.
Optic bloc
NOVATILUX module in 1 formats (2x192 LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Class I. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Light source
LED: 1000 W.
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.
Mounting Height
16-40 m.
Attachment
Painted steel bracket.
Adjustable
Adjustable luminaire with tilt range from -90º to 90º from center point. Each optical block is adjustable ± 20 independently one by one. Accessories to adapt the orientation laser.
TECHNICAL DATA
Dimensions
Downloads
Certifications
- Certificate European Conformity
- Certificate E+
- Certificate RoHS
- RAEE Certificate
Specifications
- 4000K
- 5000K
Regulations
- Icon IP66
- IP66
- Ground
- Class II
-
- IK09
Colors
- RAL 9022
