Ref. APGL

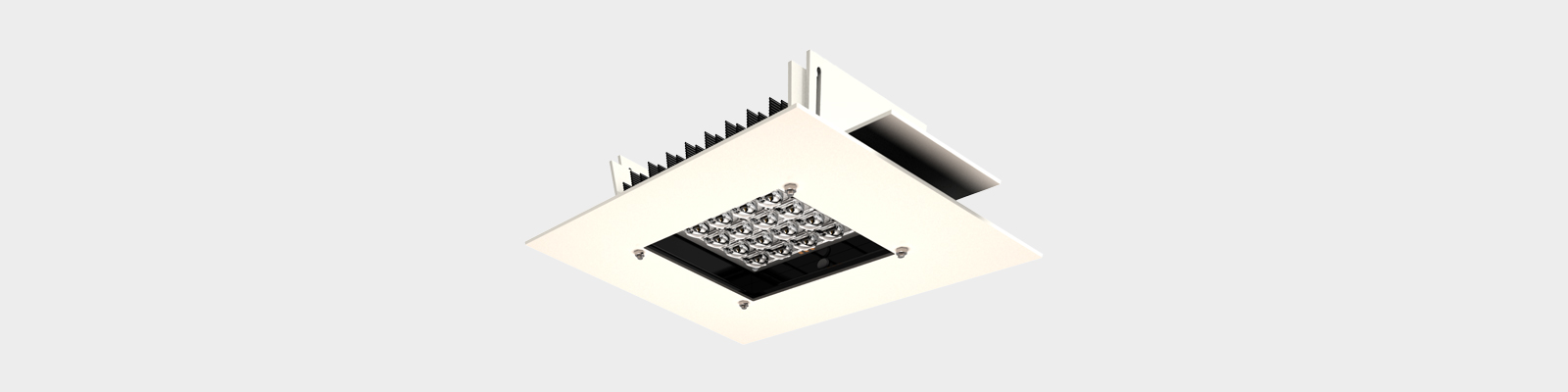

Gas Projector
Body
High pressure die-cast aluminium. Extra-clear 4mm tempered glass.
Screws
Stainless steel screws.
Optic bloc
Module NOVATILUX in 2 formats (16 or 32 LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Integrated within the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.
Regulation
Control system compatible with : PWM - 0-10V - R adjustable.
- Flow reduction options :
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9010 color.
High pressure die-cast aluminium. Extra-clear 4mm tempered glass.
Screws
Stainless steel screws.
Optic bloc
Module NOVATILUX in 2 formats (16 or 32 LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Integrated within the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.
Regulation
Control system compatible with : PWM - 0-10V - R adjustable.
- Flow reduction options :
- -Double level with line driver or programmable timer.
- -Multi-nivel with re-programable timer.
- -Remote management.
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9010 color.
TECHNICAL DATA
Dimensions
Downloads
Certifications
- Certificate ENEC
- Certificate IAC
- Certificate IEC
Specifications
- Amber
- 3000K
- 4000K
- 5000K
Regulations
- IK10
- IP66
- Class II
